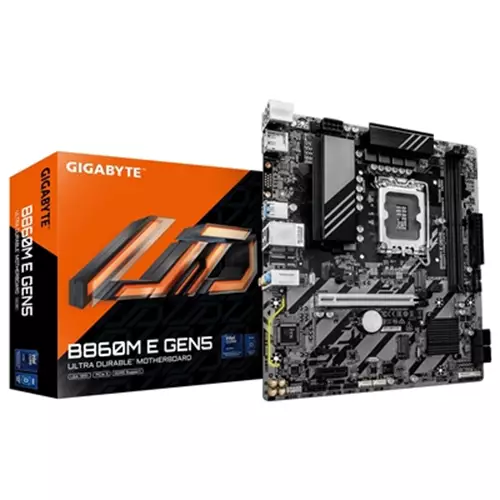

GIGABYTE B860M E GEN5 Motherboard - Intel Core Ultra Series CPUs 4+1+2 Phases VRM up to 8800MHz DDR5 (O.C.) 2xPCIe 4.0 M.2 1GbE LAN USB 3.2 Gen 1

B860M E GEN5 Key Features PCIe Gen5 Performance Supports Intel Core? Ultra processors (Series 2) Hybrid 4+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users EZ-Latch : PCIe5.0 x16 Slot with Quick Release Design Friendly UI : Multi-Theme AIO Fan Control and Q-Flash Auto Scan in BIOS and SW Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors Fast Networking : GbE LAN Extended Connectivity : HDMI DisplayPort Specification CPU LGA1851 socket: Support for Intel Core? Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU Chipset Intel B860 Express Chipset Memory Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600 MT/s 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port supporting a maximum resolution of 4096x2160@ 60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless N/A Expansion Slots CPU: - 1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1 (PCIEX1) Storage Interface Chipset: - 2 x M.2 connectors (Socket 3 M key type 2280 PCIe 4.0 x4/x2 SSD support) - 4 x SATA 6Gb/s connectors RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices USB Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port* 1 x DisplayPort* 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Smart Backup Bundled Software Norton Internet Security (OEM version) Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm
