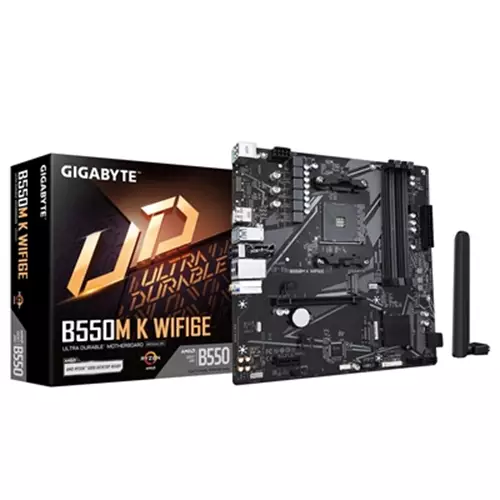

GIGABYTE B550M K WIFI6E Motherboard - AMD Ryzen 5000 CPUs up to 4733MHz DDR4 1xPCIe 4.0 + 1xPCIe 3.0 M.2 WIFI 6E 1GbE LAN USB 3.2 Gen 1

B550M K WIFI6E Key Features Supports AMD Ryzen? 5000 Series/ Ryzen? 5000 G-Series/ Ryzen? 4000 G-Series and Ryzen? 3000 and Ryzen? 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4 4 DIMMs Ultra Durable? PCIe 4.0 Ready x16 Slot Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality Fast Networks: GbE LAN Wi-Fi 6E 802.11ax WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation Rear DisplayPort and HDMI for Multi-display Support Smart Fan 6: Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design Specification CPU AMD Socket AM4 support for: AMD Ryzen? 5000 G-Series Processors/ AMD Ryzen? 5000 Series Processors/ AMD Ryzen? 4000 G-Series Processors/ AMD Ryzen? 3000 G-Series Processors/ AMD Ryzen? 3000 Series Processors Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor with AMD Radeon? Graphics support: - 1 x DisplayPort supporting a maximum resolution of 5120x2880@ 60 Hz * Support for DisplayPort 1.4 version HDCP 2.3 and HDR. - 1 x HDMI port supporting a maximum resolution of 4096x2160@ 60 Hz Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Wireless Communication Module MediaTek Wi-Fi 6E MT7902 - WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Expansion Slots 1 x PCI Express x16 slot integrated in the CPU: - AMD Ryzen? 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen? 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. 1 x PCI Express x1 slot integrated in the Chipset: - Supporting PCIe 3.0 x1 mode Storage Interface 1 x M.2 connector (M2A_CPU) integrated in the CPU supporting Socket 3 M key type 2280 SSDs: - AMD Ryzen? 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen? 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) integrated in the Chipset supporting Socket 3 M key type 2280 SSDs: - Supporting PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors integrated in the Chipset: - Support for RAID 0 RAID 1 and RAID 10 USB CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (4 ports on the back panel 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (1T1R) 3 x audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0 Unique Features Support for APP Center - @BIOS - EasyTune - Smart Backup - System Information Viewer Support for Q-Flash Bundled Software Norton Internet Security (OEM version) Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
