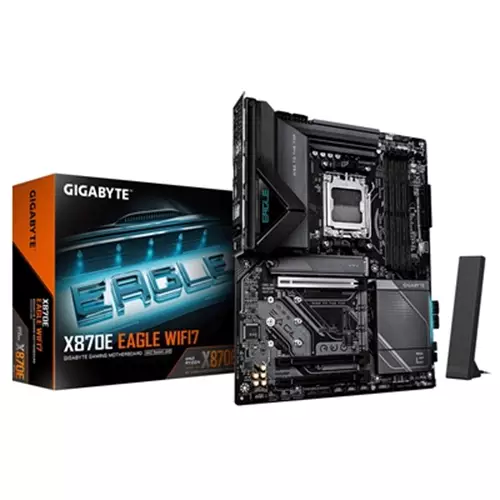

GIGABYTE X870E EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs 16+2+2 Phases Digital VRM up to 8200Hz DDR5 (OC) 1xPCIe 5.0 + 3xPCIe 4.0 Wi-Fi 7 5GbE LAN USB 4

X870e Eagle Wifi7 Key Features Amd Socket Am5:Supports Amd Ryzen? 9000 / 8000 / 7000 Series Processors Digital Twin 16+2+2 Phases Vrm Solution Dual Channel Ddr5:4*Dimms With Amd Expo?Memory Module Support Wifi Ez-Plug: Quick And Easy Design For Wi-Fi Antenna Installation Ez-Latch Plus:Pcie And M.2 Slots With Quick Release Screwless Design Ez-Latch Click:M.2 Heatsinks With Screwless Design Friendly Ui: Multi-Theme Aio Fan Control And Q-Flash Auto Scan In Bios And Sw Ultra-Fast Storage:4*M.2 Slots Including 1* Pcie 5.0 X4 Efficient Thermal:Vrm Thermal Armor Advanced M.2 Thermal Guard Fast Networking:5Gbe Lan Wi-Fi 7 With Directional Ultra-High Gain Antenna Extended Connectivity:Dual Usb4 Type-C With Dp-Alt Hdmi Reliable Audio:Realtek Alc1220 Hd Audio Audiophile Grade Capacitors Specification Cpu Amd Socket Am5 Support For: Amd Ryzen? 9000 Series Processors/ Amd Ryzen? 8000 Series Processors/ Amd Ryzen? 7000 Series Processors Chipset Amd X870e Memory Support For Ddr5 8200(Oc) / 8000(Oc) / 7800(Oc) / 7600(Oc) / 7200(Oc) / 7000(Oc) / 6800(Oc) / 6666(Oc) / 6600(Oc) / 6400(Oc) / 6200(Oc) / 6000(Oc) / 5600(Oc) / 5200 / 4800 / 4400 Mt/S Memory Modules 4 X Ddr5 Dimm Sockets Supporting Up To 256 Gb (64 Gb Single Dimm Capacity) Of System Memory Dual Channel Memory Architecture Support For Non-Ecc Un-Buffered Dimm 1Rx8/2Rx8/1Rx16 Memory Modules Support For Amd Extended Profiles For Overclocking (Amd Expo?) And Extreme Memory Profile (Xmp) Memory Modules Onboard Graphics Integrated Graphics Processor With Amd Radeon? Graphics Support+Asmedia Usb4 Controller: - 2 X Usb4 Usb Type-C Ports Supporting Usb4 And Displayport Video Outputs And A Maximum Resolution Of 3840X2160@240 Hz * Support For Displayport 1.4 Version And Hdr. Integrated Graphics Processor With Amd Radeon? Graphics Support: - 1 X Hdmi Port Supporting A Maximum Resolution Of 4096X2160@ 60 Hz * Support For Hdmi 2.1 Version Hdcp 2.3 And Hdr. ** Support For Native Hdmi 2.1 Tmds Compatible Ports. Audio Realtek Alc1220 Codec * The Back Panel Line Out Jack Supports Dsd Audio. High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio Access The Audio Software For Audio Settings. Support For S/Pdif Out Lan Realtek 5Gbe Lan Chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module Realtek Wi-Fi 7 Rtl8922ae - 802.11A B G N Ac Ax Be Supporting 2.4/5/6 Ghz Carrier Frequency Bands - Bluetooth 5.4 - Support For 11Be 160Mhz Wireless Standard Expansion Slots 1 X Pci Express X16 Slot (Pciex16) Integrated In The Cpu: Amd Ryzen? 9000/7000 Series Processors Support Pcie 5.0 X16 Mode Amd Ryzen? 8000 Series-Phoenix 1 Processors Support Pcie 4.0 X8 Mode Amd Ryzen? 8000 Series-Phoenix 2 Processors Support Pcie 4.0 X4 Mode * The Pciex16 Slot Can Only Support A Graphics Card Or An Nvme Ssd. If Only One Graphics Card Is To Be Installed Be Sure To Install It In The Pciex16 Slot. Chipset: - 1 X Pci Express X16 Slot Supporting Pcie 4.0 And Running At X4 (Pciex4) * The Pciex4 Slot Shares Bandwidth With The M2d_Sb Connector. The Pciex4 Slot Becomes Unavailable When A Device Is Installed In The M2d_Sb Connector. - 1 X Pci Express X16 Slot Supporting Pcie 3.0 And Running At X2 (Pciex2) Storage Interface 1 X M.2 Connector (M2a_Cpu) Integrated In The Cpu Supporting Socket 3 M Key Type 25110/22110/2580/2280 Ssds: Amd Ryzen? 9000/7000 Series Processors Support Pcie 5.0 X4/X2 Ssds Amd Ryzen? 8000 Series-Phoenix 1 Processors Support Pcie 4.0 X4/X2 Ssds Amd Ryzen? 8000 Series-Phoenix 2 Processors Support Pcie 4.0 X4/X2 Ssds 3 X M.2 Connectors (M2b_Sb M2c_Sb M2d_Sb) Integrated In The Chipset Supporting Socket 3 M Key Type 22110/2280 Pcie 4.0 X4/X2 Ssds 4 X Sata 6Gb/S Connectors Raid 0 Raid 1 Raid 5 And Raid 10 Support For Nvme Ssd Storage Devices * Raid 5 Is Only Available On Amd Ryzen? 9000 Series Processors. Raid 0 Raid 1 And Raid 10 Support For Sata Storage Devices Usb Cpu+Asmedia Usb4 Controller: - 2 X Usb4 Usb Type-C Ports On The Back Panel Cpu: - 2 X Usb 3.2 Gen 1 Ports On The Back Panel Chipset: - 1 X Usb Type-C Port With Usb 3.2 Gen 2X2 Support Available Through The Internal Usb Header - 2 X Usb 3.2 Gen 2 Type-A Ports (Red) On The Back Panel - 6 X Usb 3.2 Gen 1 Ports (2 Ports On The Back Panel 4 Ports Available Through The Internal Usb Headers) - 8 X Usb 2.0/1.1 Ports (2 Ports On The Back Panel 6 Ports Available Through The Internal Usb Headers) Internal I/O Connectors 1 X 24-Pin Atx Main Power Connector 2 X 8-Pin Atx 12V Power Connectors 1 X Cpu Fan Header 1 X Cpu Fan/Water Cooling Pump Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 3 X Addressable Rgb Gen2 Led Strip Headers 1 X Rgb Led Strip Header 4 X M.2 Socket 3 Connectors 4 X Sata 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X Usb Type-C Header With Usb 3.2 Gen 2X2 Support 2 X Usb 3.2 Gen 1 Headers 3 X Usb 2.0/1.1 Headers 1 X Trusted Platform Module Header (For The Gc-Tpm2.0 Spi V2 Module Only) 1 X Reset Jumper 1 X Clear Cmos Jumper Back Panel Connectors 1 X Hdmi Port (Note) 1 X Reset Button 1 X Power Button 1 X Clear Cmos Button 1 X Q-Flash Plus Button 2 X Usb 2.0/1.1 Ports 4 X Usb 3.2 Gen 1 Ports 2 X Usb4 Usb Type-C Ports (Displayport (Note)) 1 X Rj-45 Port 2 X Usb 3.2 Gen 2 Type-A Ports (Red) 2 X Antenna Connectors (2T2r) 2 X Audio Jacks 1 X Optical S/Pdif Out Connector I/O Controller Ite I/O Controller Chip H/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control Bios 1 X 256 Mbit Flash Use Of Licensed Ami Uefi Bios Pnp 1.0A Dmi 2.7 Wfm 2.0 Sm Bios 2.7 Acpi 5.0 Unique Features Support For Gigabyte Control Center (Gcc) Support For Q-Flash Support For Q-Flash Plus Support For Smart Backup Bundled Software Norton Internet Security (Oem Version) Operating System Support For Windows 11 64-Bit Form Factor Atx Form Factor; 30.5Cm X 24.4Cm
