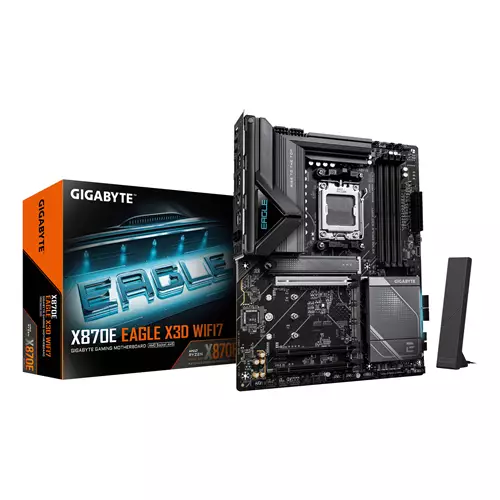

GIGABYTE X870E EAGLE X3D WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs 14+2+2 Phases Digital VRM up to 9000Hz DDR5 (OC) 1xPCIe 5.0 + 3xPCIe 4.0 Wi-Fi 7 5GbE LAN USB 4

X870E EAGLE X3D WIFI7 Key Features X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI DDR5 OC up to 9000MT/s DriverBIOS : Wi-Fi Driver Pre-install Power-On EZ to Launch the Network. AMD Socket AM5 : Supports AMD Ryzen? 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Channel DDR5 : 4*DIMMs with AMD EXPO?Memory Module Support M.2 EZ-Flex : high-efficiency heat dissipation flexible baseplate for M.2 SSD (Exclusive Patented Design) WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation PCIe EZ-Latch Plus : PCIe slots with Quick Release Screwless Design EZ-Latch Plus : M.2 slots with Quick Release Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme AIO Fan Control and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage : 4*M.2 slots including PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced M.2 Thermal Guard Ext. Fast Networking : 5GbE LAN Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity : HDMI Dual USB4 Type-C with DP-Alt PCIe UD Slot : PCIe 5.0 x16 slot with 10X strength for graphics card Specification CPU AMD Socket AM5 support for: AMD Ryzen? 9000 Series Processors/ AMD Ryzen? 8000 Series Processors/ AMD Ryzen? 7000 Series Processors Chipset AMD X870E Memory Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO?) and Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor with AMD Radeon? Graphics support+ASMedia USB4 Controller: - 2 x USB4 USB Type-C ports supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz Integrated Graphics Processor with AMD Radeon? Graphics support: - 1 x HDMI port supporting a maximum resolution of 4096x2160@ 60 Hz Audio Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module Qualcomm Wi-Fi 7 QCNCM865 - 802.11a b g n ac ax be supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard Expansion Slots 1 x PCI Express x16 slot (PCIEX16) integrated in the CPU: - AMD Ryzen? 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot supporting PCIe 3.0 and running at x2 (PCIEX2) Storage Interface 1 x M.2 connector (M2A_CPU) integrated in the CPU supporting Socket 3 M key type 25110/22110/2580/2280 SSDs: - AMD Ryzen? 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen? 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen? 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 3 x M.2 connectors (M2B_SB M2C_SB M2D_SB) integrated in the Chipset supporting Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0 RAID 1 RAID 5 and RAID 10 support for NVMe SSD storage devices RAID 0 RAID 1 and RAID 10 support for SATA storage devices USB CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panel CPU: - 1 x USB Type-C port on the back panel with USB 3.2 Gen 2 support Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support available through the internal USB header - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 4 x USB 3.2 Gen 1 ports on the back panel - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header Back Panel Connectors 1 x HDMI port* 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 4 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C port with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports (DisplayPort*) 1 x RJ-45 port 4 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS 1 x 512 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support Smart Backup Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm
