Kingston · Memory & Storage

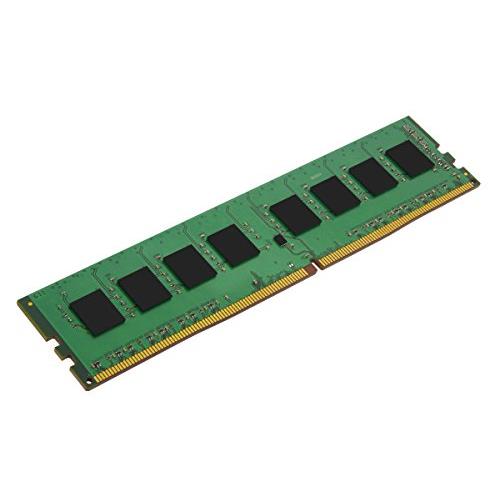

Kingston Technology ValueRAM KVR32N22S8/8. Component for: PC/server Internal memory: 8 GB Memory layout (modules x size): 1 x 8 GB Internal memory type: DDR4 Memory clock speed: 3200 MHz Memory form factor: 288-pin DIMM CAS latency: 22

  ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) 1Rx8 memory module based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.   Power Supply: VDD = 1.2V Typical VDDQ = 1.2V Typical VPP = 2.5V Typical VDDSPD = 2.2V to 3.6V Nominal and dynamic on-die termination (ODT) for data strobe and mask signals Low-power auto self refresh (LPASR) Data bus inversion (DBI) for data bus On-die VREFDQ generation and calibration Single-rank On-board I2 serial presence-detect (SPD) EEPROM 16 internal banks; 4 groups of 4 banks each Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) Selectable BC4 or BL8 on-the-fly (OTF) Fly-by topology Terminated control command and address bus PCB: Height 1.23” (31.25mm) RoHS Compliant and Halogen-Free
