Raritan · Power Distribution Units (pdus)

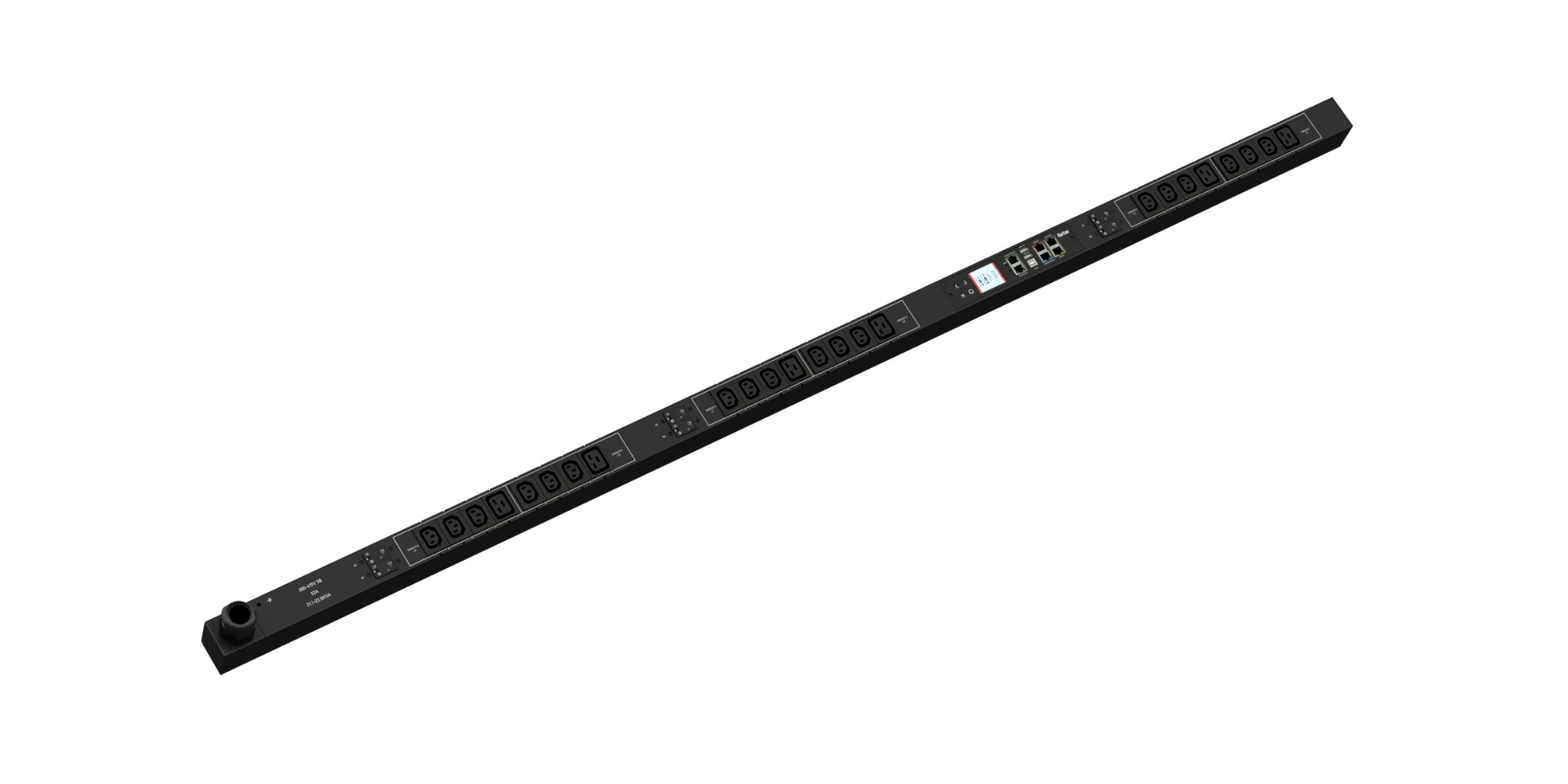

Raritan PX3-5528-M11V2 power distribution unit (PDU) 24 AC outlet(s) 0

Tender Text/Bid Submittal TextMonitored and switched rack power distribution unit (0U [vertical]. 22.2kVA. 24 outlets). INPUT: 400v (3-phase WYE). 32a - IEC 60309 3P+N+E 6h 32A plug (4P5W); OUTPUT: 18@ C13. 6@ C19 outlets; on 6@ 1-pole. 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW. kVA. V. A. Power Factor] - per inlet. per breaker/fuse. per outlet. Residual Current Monitoring Supported; Remote network monitoring via HTML. JSON-RPC. SSH. Telnet. MODBUS/TCP. and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed. 16MB SPI Flash. and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP. DHCP. SSH(CLI). or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Tri-color status LED per receptacle. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 65mm x 1780mm (2.1in x 2.6in x 70.1in). Max Weight TBD. Maximum ambient temperature 60C at full load.
