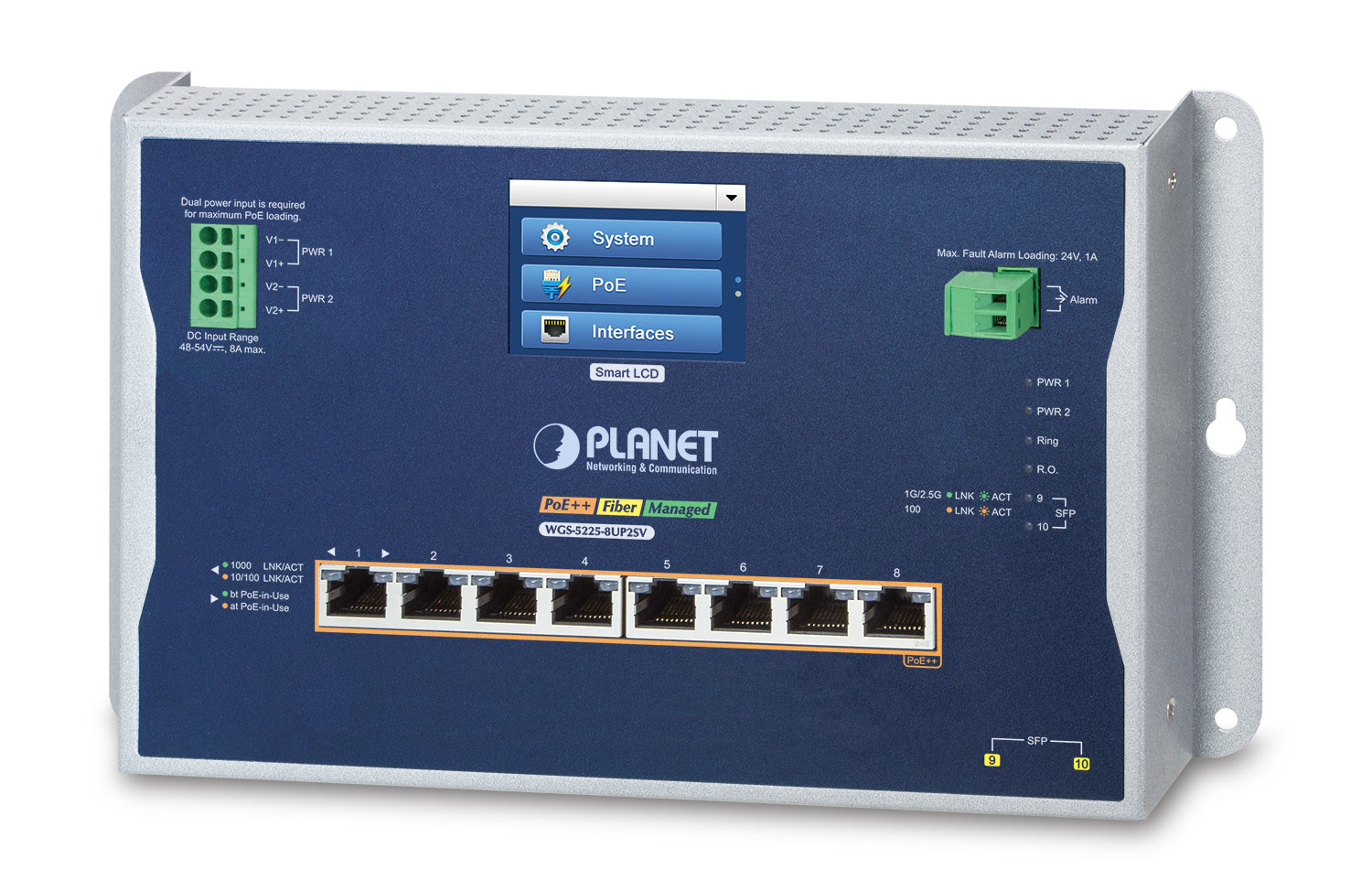

PLANET IP30. IPv6/IPv4. L2+ 8-Port Managed L2/L2+ Power over Ethernet

Wall-mounted PoE++ Managed Switch with Advanced L2+/L4 Switching and Security PLANET WGS-5225-8UP2SV is an Industrial Wall-mount PoE++ Managed Switch with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports featuring 95-watt PoE and two additional 100/1000/2500BASE-X SFP ports. With a total power budget of up to 720 watts for different kinds of PoE applications. and featuring networking speed and operating temperature ranging from -20 to 70 degrees C in a compact but rugged IP30 metal housing. the WGS-5225-8UP2SV is an ideal solution to meet the demand for the following network applications: 802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution As the WGS-5225-8UP2SV adopts the IEEE 802.bt PoE++ standard and PoH technology. it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs. such as: - PoE PTZ speed dome cameras - Network devices - Thin clients - AIO (all-in-one) touch PCs. point of sale (POS) and information kiosks - Remote digital signage displays - PoE lightings 802.3bt PoE++ and Advanced PoE Power Output Mode Management To meet the demand of various powered devices consuming stable PoE power. the WGS-5225-8UP2SV provides five different PoE power output modes for selection. - 90W 802.3bt PoE++ Power Output Mode - 95W UPOE/PoH Power Output Mode - 30W End-span PoE Power Output Mode - 30W Mid-span PoE Power Output Mode - 60W Force Power Output Mode Innovative Wall-mount Installation The WGS-5225-8UP2SV is specially designed to be installed in a narrow environment. such as wall enclosure or electric box. The compact. flat and wall-mounted design fits easily in any space-limited location. It adopts the user-friendly “Front Access” and touch color screen design. making the installing. cable wiring. LED monitoring and maintenance of the WGS-5225-8UP2SV placed in an enclosure very convenient for technicians. The WGS-5225-8UP2SV can be installed by fixed wall mounting. thereby making its usability more flexible. Intuitive LCD Control The WGS-5225-8UP2SV comes with an intuitive touch panel on its front panel that facilitates the Ethernet PoE PD management that greatly promotes management efficiency in large-scale networks. such as enterprises. hotels. shopping malls. government buildings. and other public areas. It also features the following special management and status functions: - IP address. VLAN and QoS configuration - PoE management and status - Port management and status. and SFP information - Troubleshooting: cable diagnostic and remote IP ping - Maintenance: reboot. factory default and save configuration Redundant Ring. Fast Recovery for Critical Network Applications The WGS-5225-8UP2SV supports redundant ring technology and features strong. rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology. Spanning Tree Protocol (802.1s MSTP). and dual power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network. the recovery time of data link can be as fast as 10ms. Built-in Unique PoE Functions for Powered Devices Management As it is the managed PoE switch for surveillance. wireless and VoIP networks. the WGS-5225-8UP2SV features the following special PoE management functions: - PD alive check - Scheduled power recycling - PoE schedule - PoE usage monitoring Intelligent Powered Device Alive Check The WGS-5225-8UP2SV can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding. the WGS-5225-8UP2SV will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden. Scheduled Power Recycling The WGS-5225-8UP2SV allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore. it will reduce the chance of IP camera or AP crash resulting from buffer overflow. PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contributing to environmental protection. the WGS-5225-8UP2SV can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during
