Shuttle · Networking Cards

Shuttle PSE01 Gigabit LAN with PoE Output for EN01 Edge PCs

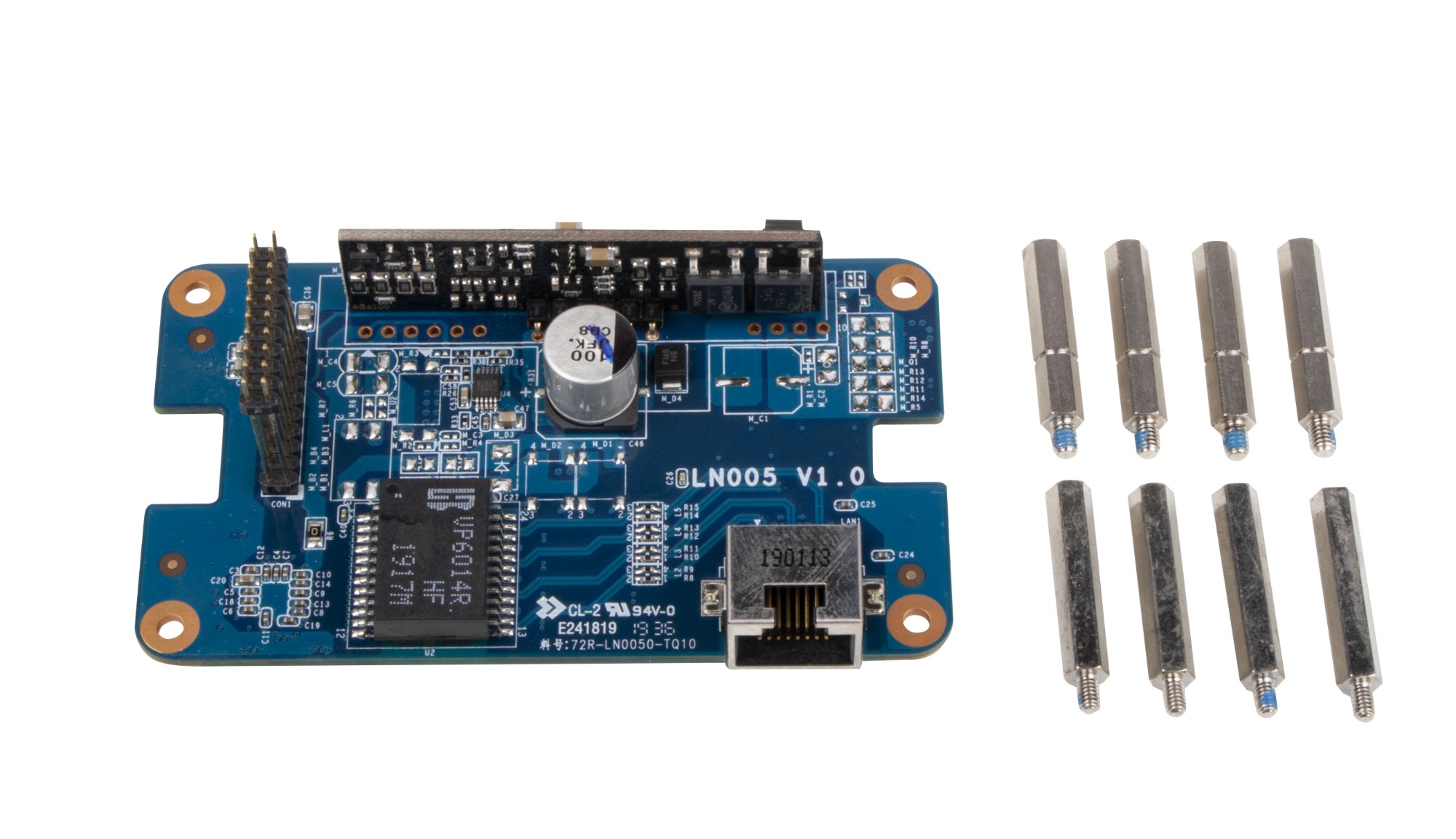

The PSE01 enables the EN01 to supply another network device with power via PoE The Shuttle accessory PSE01 is a daughterboard for the EN01 series which provides a second Gigabit network port with Power-over-Ethernet (PoE) function. This makes the EN01 act as Power Sourcing Equipment (PSE) that carries both data and operating voltage to a connected network device. such as an IP camera. Contents: - PoE daughterboard with RJ45 network connector - 8× standoff (4 of these have a marking) - Adhesive membrane - Quick guide Technical data: - LAN controller: Realtek RTL8119I supports 1 Gbit/s - PoE output wattage at the LAN port: 48 Vdc. max. 0.5 A - Supports 802.3AT & 802.3AF PoE standards Recommended power adapter for EN01: ≥ 40 W. if the accessory PSE01 is not used ≥ 65 W. if the accessory PSE01 is installed Compatibility: Compatible with the following Shuttle products: Edge EN01J3. EN01J4. EN01E. EN01B
