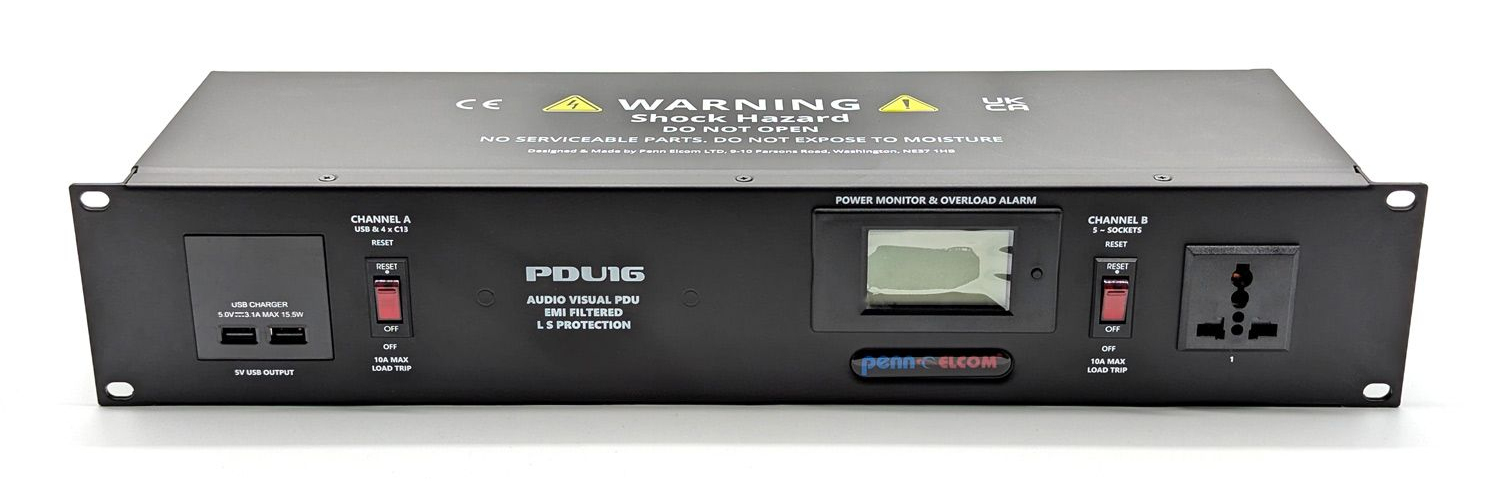

Penn Elcom 2U 20 Amp Rack Mount PDU with Power Monitoring and Overload

2U 20 Amp Rack Mount PDU with Power Monitoring and Overload Protection 2U high Horizontal Mounting unit designed to provide versatile hook-up for the distribution of AC power within Audio Visual & Multimedia applications. Main Input - Neutrik 20A powerCON with 2nd order EMI filter & GDT/VDR protection circuit against Lightning Strike & Local Power Surge Circuit A: - Protection: Illuminated Circuit Breaker 10A overload protection - Output: 4 Way IEC C13 Outlet Strip with max combined load of 10A 2 Dual USB 5V 1.8A charger modules Circuit B: - Output - 5 Universal sockets useable with plugs from the UK. US. Europe and Australia. with a maximum Combined Load 10A. (Schuko type plugs have a 2 pin connection only). For full universal plug application guide see appendix A - Protection: Illuminated Circuit Breaker 10A overload protection - LCD Monitor: LCD Power Monitor giving Voltage. Current . Power & Energy Levels. - Earth Link: M4 Screw Terminal for Rack Grounding Usage: - Nominal Voltage: 230V - Usable Voltages 240V full range - Frequency: 50/60HZ full range - Max. A/C Output: Current 20A - Case Size: 87mm x 98mm x 430mm Compliance All components used in this conform to current RoHS. CE & UL certification - E&OE (EMI:EN55022 (CISPR22) Class B; EN61000-3-2.3 EMS:EN61000-4-2.3.4.5.6.8.11; Light industry level. criteria A)
