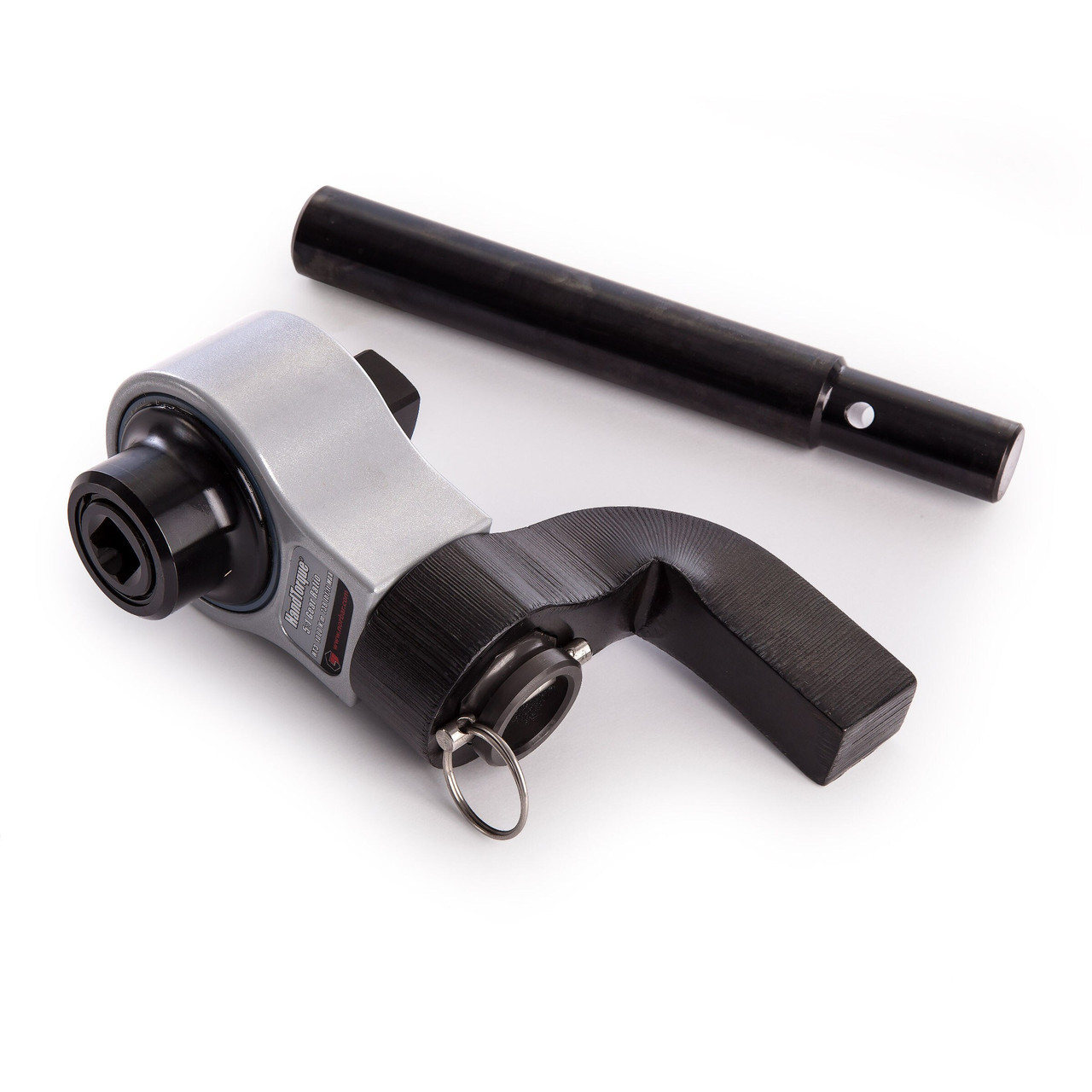

Norbar 180260 HandTorque HT3-1000 Torque Multiplier 1000 Nm 180260

Norbar 180260 HandTorque HT3-1000 Manual Torque Multiplier 100-1000 N-m 74.0-738.0 lbf-ftThe Norbar 180260 is a compact and versatile Torque Multiplier that fits in the palm of your hand. The HandTorque HT3-1000 has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one-fifth of the desired output torque. Sold in a cardboard carton.Features:Quick change cranked reaction with improved flexibility allowing reaction in 8 orientationsRobust construction means minimal maintenance and long lifeSmall and compact designSupplied with 2 reaction bar styles for maximum versatilityIf calibration is required, a UKAS accredited calibration certificate may be ordered (at extra cost)Specification:Accuracy: ±4%Operates between: 100.00 - 1000.00 N·m 74.00 - 738.00 lbf·ftTool Weight: 1.5 KgOutput Square: 3/4"Input Square: 1/2"Reaction Plate Weight: 0.5 Kg cranked / 0.69 Kg straight5:1 nominal torque multiplication reaction dependant. Ratio with cranked foot is 4.8:1; with straight reaction being 4.9:1
